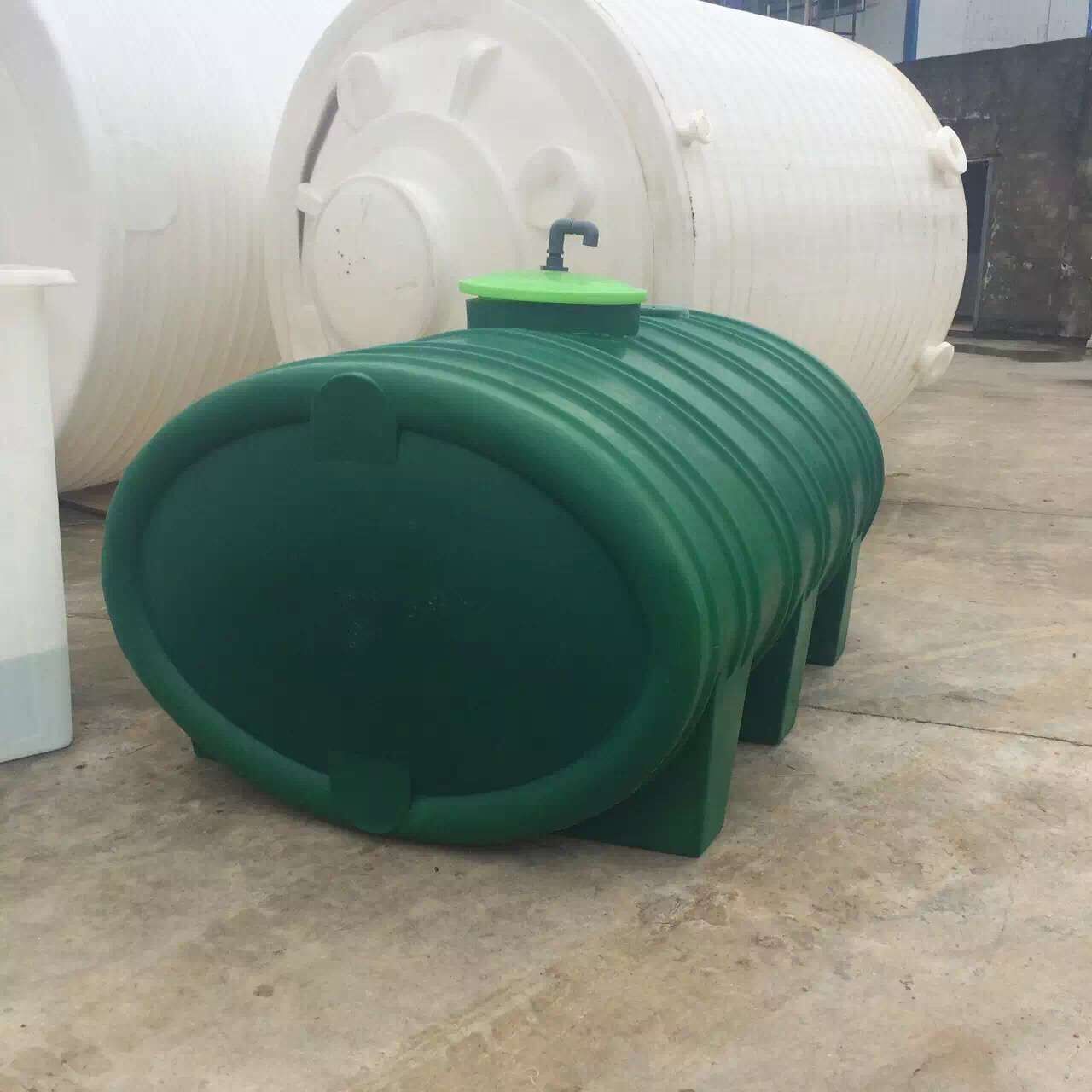

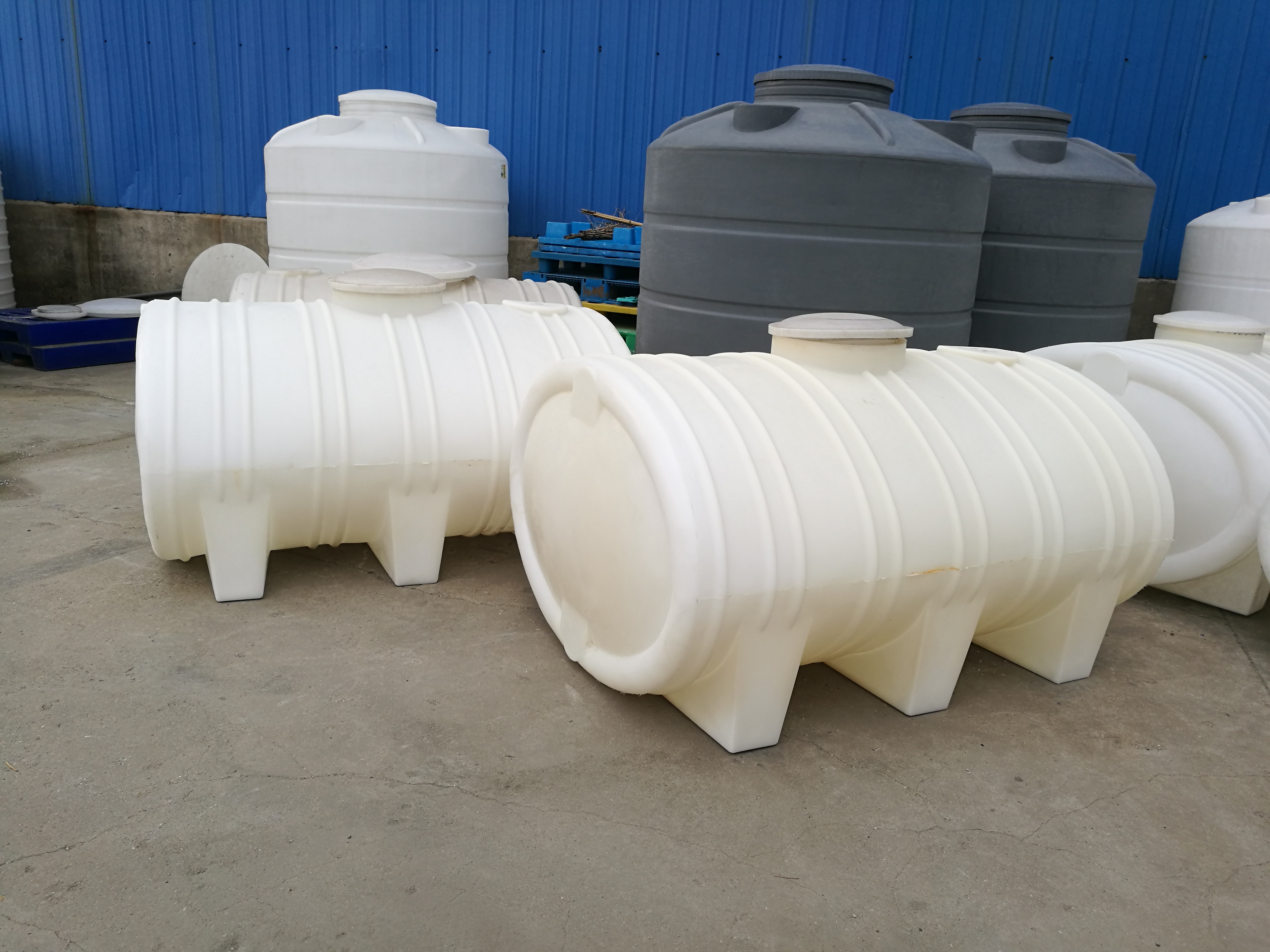

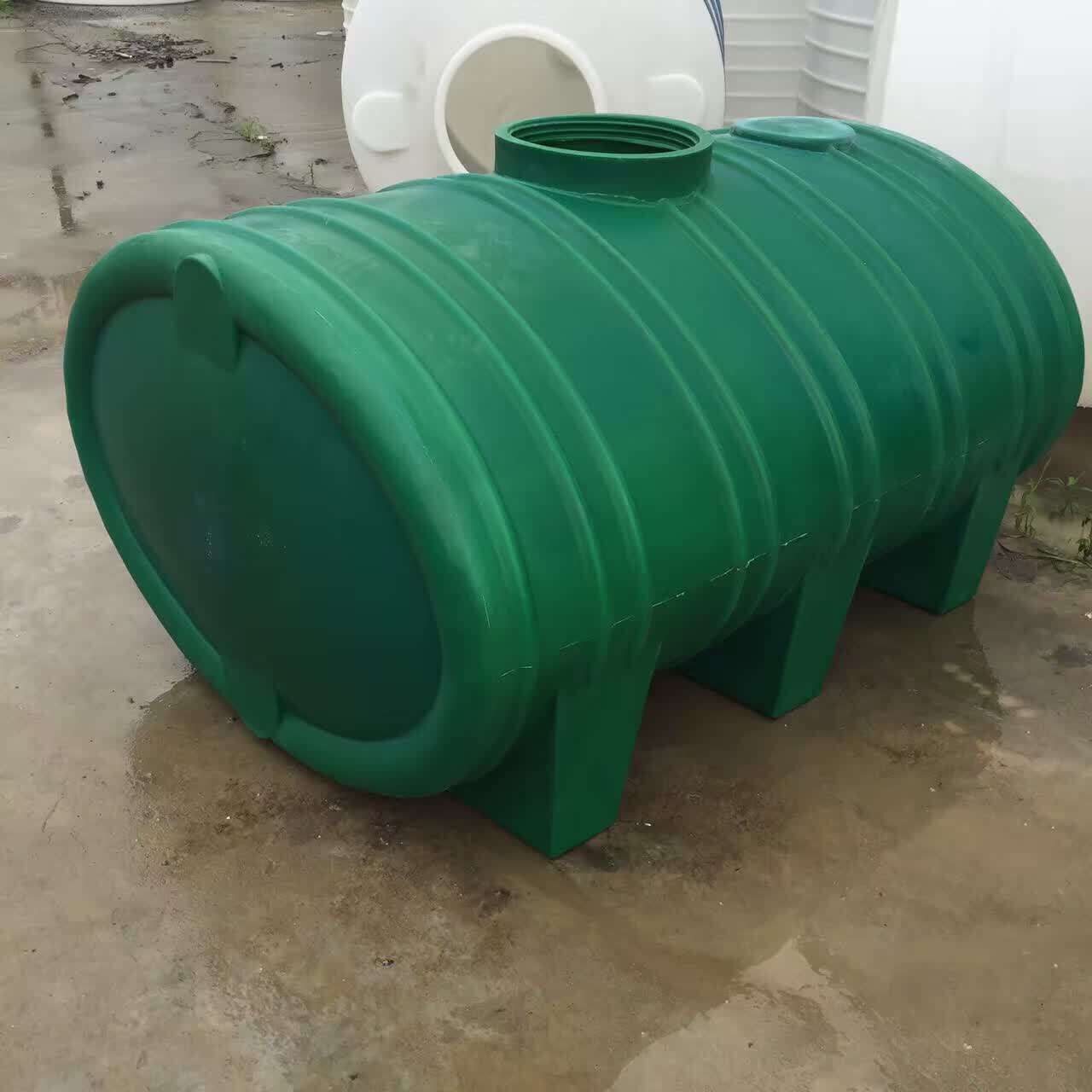

2000L Polyethylene Rotomolded Horizontal Water Cartage Tanks
Desciption of the water tank
Treering Company Horizontal Bulk Storage Leg Tanks Made by 100% vergin LLDPE material , using
Rotomolding technique .
The rotational molding is a thermoplastic fabrication technique that manufactures hollow products by using
heat and a revolving metal mold. Rotomolded products are seamless, uniform in wall thickness and of
single construction, which eliminates costly fabrication processes and the need for replacement parts.
Huge water tank as Water conservation,which is the most cost-effective and environmentally sound way to
Horizontal Water storage tanks can be used on Truck , and the tank bottom we normally will drilled a outlet
(drawing 1" -2") ,install a tap or brass ball valve
Plastic Horizontal water tanks usage
Chemical storage
Transport liquids
Molasses, liquid fertiliser and liquid feed transportation tank
Mixer tank
Sprayer tank for agricultural purposes
Potable water tank (black tank only)
Civil engineering applications where mains water is not available
Tank Features
2000 Litre capacity
Manufactured from UV stabilised Polyethylene (LLDPE) specially formulated for transport tanks
Tank will not rust or corrode and is impact resistant
Rotationally moulded one piece design
Thick walls : 5 -10 mm
Full drainage sump
Large 510mm lid
Spill containment lip surrounds the lid
Moulded pin holes allow the tank to be mounted to flat surfaces
2” BSP outlet (other sizes are available upon request)
Choice of tank colour available
Advantages :
100% food grade plastic ----helps the water to retain its original characteristic over a period of time.
Half automic roto molded technology ----used to prepare the tanks in one piece so that there are no joints.
This prevents leakage and longevity of the tanks.
380 mm top access inspection hatch
Ribbed sides for extra strength
Outlets: 1″ standard size. Other outlets sizes available upto request
Sepcification
| Model | HPT 2000 L Horizontal tank |
| Capacity | 2000 liter ( 528 U.S. Gallon) |
| Dimensions | L 2000* W1420* H 1080 mm |
| Liquid Access | 1 Outlet , 1 Manway / Lid |
| Weight | 100kg- 130kg |
| Lids diameter | 380mm |
| Fitting size | 1″ -4" |
| Specific Gravity | 1.0 -1.65 |
| Advantage | - Corrosion proof
-
- Light weight, easy to handle and clean
-
- Temperature Resistance
-
- Food grades of Polyethylene
-
- Maintenance-free
|
All the size sheet for the water tank
| Model | Capacity
(Litres) | Capacity (Gallons) | Manhole (inner)Access | Length (mm) | Width (mm) | Height(mm) |
| HPT 0.5T | 500 L | 110 | 380 | 1180 | 800 | 900 |
| HPT 1T | 1000 L | 220 | 380 | 1500 | 1000 | 980 |
| HPT2T | 2000 L | 440 | 510 | 2000 | 1420 | 1080 |
| HPT 3T | 3000 L | 750 | 510 | 2250 | 1430 | 1050 |
| HPT 5T | 5000 L | 1320 | 510 | 3700 | 1700 | 1370 |
| HPT 10T | 10,000 L | 2600 | 650 | 5000 | 2000 | 1450 |
The Outlet , we normally using flange (DN 20 to DN 100) as Drain
